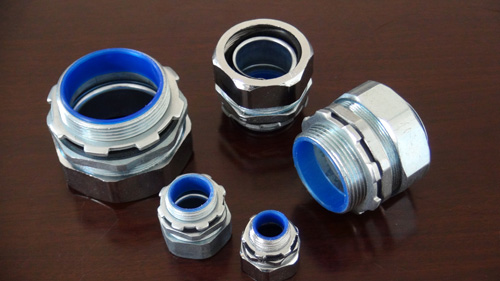

防水盒接頭
產品分類：軟管及接頭
特點： 盒接頭具有、、不變形、裝拆靈活、壽命特長。
盒接頭具有、、不變形、裝拆靈活、壽命特長。
盒接頭尺寸規格表：
| 型號 | 規格 | Dimension(mm) | 牙制 | 包裝數量 | ||||
| l.D | A | B | C | D | ||||
| YCB-03B | 3/8″ | 10.7 | 20.9 | 30.0 | 15.0 | 54.0 | PF1/2″ | 50 |
| YCB-04B | 1/2″ | 14.5 | 20.9 | 35.5 | 15.0 | 57.0 | PF1/2″ | 50 |
| YCB-06B | 3/4″ | 19.3 | 26.4 | 43.0 | 15.0 | 67.0 | PF3/4″ | 50 |
| YCB-10B | 1″ | 24.4 | 33.1 | 48.0 | 21.5 | 73.0 | PF1″ | 25 |
| YCB-12B | 11/4″ | 33.4 | 41.9 | 58.0 | 22.5 | 93.5 | PF11/4″ | 20 |
| YCB-14B | 11/2″ | 38.0 | 47.5 | 64.2 | 25.0 | 103.0 | PF11/2″ | 10 |
| 型號 | 規格 | Dimension(mm) | 牙制 | 包裝數量 | ||||
| l.D | A | B | C | D | ||||
| YZB-03B | 3/8″ | 10.7 | 20.9 | 30.0 | 15.0 | 54.0 | PF1/2″ | 50 |
| YZB-04B | 1/2″ | 14.5 | 20.9 | 35.5 | 15.0 | 57.0 | PF1/2″ | 50 |
| YZB-06B | 3/4″ | 19.3 | 26.4 | 43.0 | 15.0 | 67.0 | PF3/4″ | 50 |
| YZB-10B | 1″ | 24.4 | 33.1 | 48.0 | 21.5 | 73.0 | PF1″ | 25 |
| YZB-12B | 11/4″ | 33.4 | 41.9 | 58.0 | 22.5 | 93.5 | PF11/4″ | 20 |
| YZB-14B | 11/2″ | 38.0 | 47.5 | 64.2 | 25.0 | 103.0 | PF11/2″ | 10 |
| YZB-20B | 2″ | 48.8 | 59.0 | 86.6 | 25.0 | 126.0 | PF2″ | 10 |
| YZB-24B | 21/2″ | 59.4 | 75.4 | 103.0 | 25.0 | 165.0 | PF21/2″ | |
| YZB-30B | 3″ | 75.8 | 87.5 | 120.0 | 26.0 | 189.0 | PF3″ | |
| YZB-40B | 4″ | 97.6 | 113.0 | 157.0 | 32.0 | 229.0 | PF4″ | |
| YZB-50B | 5″ | 123.0 | 136.0 | 175.0 | 40.0 | 115.0 | PF5″ | 自定 |
| YZB-60B | 6″ | 148.0 | 162.0 | 200.0 | 50.0 | 120.0 | PF6″ | 自定 |
?
